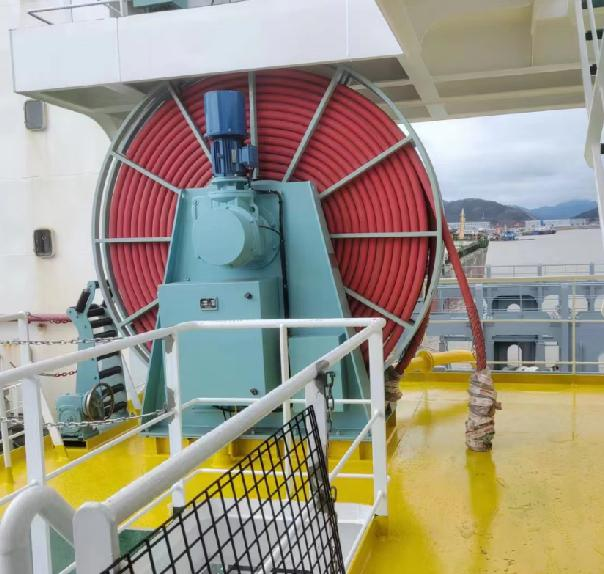

Marine Cable Management System(CMS)
Cable Management System is designed to be placed on board of ships and acts as the link between ship and shore electrical infrastructures.It has the functions of torque limitation, cable tension and speed continuously adjustable. It can automatically store and release the connecting cable of shore-ship, and has the function of cable automatic management.BFMP CMS comply with IEC/ISO/IEEE standard.
Technical Features
|
Operating Voltage |
440V, 50/60Hz |
7.2kV/12kV, 50/60Hz |
|
Power Capacity |
Customisable to suit any application |
|
|
Operation Environment |
-25°C ~60°C,Relative humidity: ≤95% |
|
|
Reel Type |
Drum(1or2 Cables) & Reel(≤4 Cables) |
|
|
Cables |
Configurable: Number, reeling length, cross section,etc. |
|
|
Collector |
Power rings+earth ring+control rings/F&HF |
|
|
IP Rating |
IP56 |
|
|
Torque Control |
Frequency conversion constant torque control |
|
|
Structure |
Stainless steel Reel, double support double bearing |
|
|
Cable Guide |
With auxiliary reducer |
|
|
Cable Crimp Speed |
10m/min |
|
|
Communicatio n Interface |
Real-time monitoring of shore and ship, data exchange and sharing, alarm information transmission and other functions (optional) |
|
|
Approvals |
Complies with IEC/IEEE80005, Classification Society requirements |
|

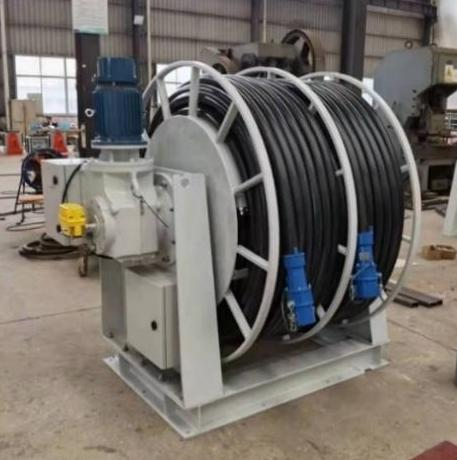

LV Shore Power Cable Reel
Typical Configurations
|
Type |
Cable spec. |
Cable Qty. |
Cable Length |
Rated Voltage |
Rated Current |
Plug Spec. |
|
Reel |
3*95+1*50+4*2.5 |
1/2/4 |
100m |
440V |
250A/400A /800A |
1/2/3/4 *250A |
|
Drum |
3*95+1*50+4*2.5 |
1/2 |
100m |
440V |
250A/400A |
1/2* 250A |
HV Shore Power Cable Reel
Typical Configurations
|
Type |
Cable spec. |
Cable Qty. |
Cable Length |
Rated Voltage |
Rated Current |
Plug Spec. |
|
Reel |
3*95+1*50+4*2.5 |
1 |
65m |
6600kV |
250A |
1*350A |
|
Reel |
3*95+1*50+4*2.5 |
2 |
65m |
6600kV |
450A |
2*350A |
|
Drum |
3*95+1*50+4*2.5 |
1/2 |
65m |
6600kV |
250A/450A |
1/2* 350A |
