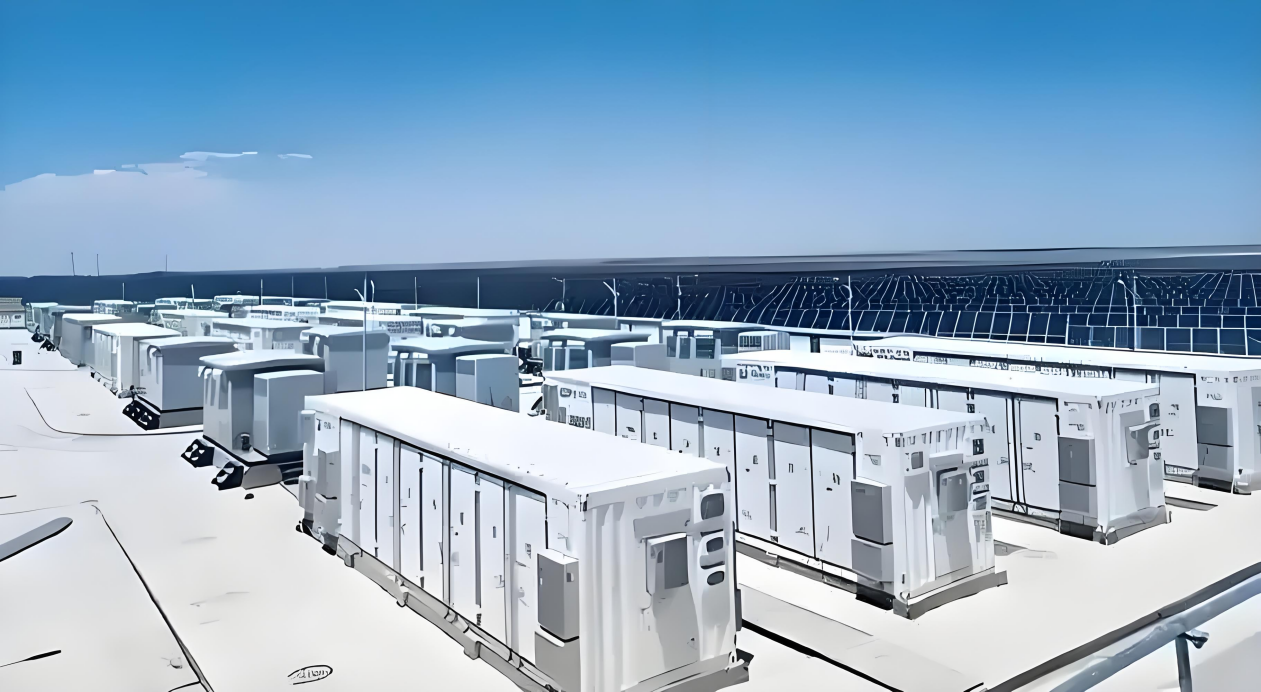

Container-sized Energy Storage Power Station
Product Features:
1. IP67 protection, improving environmental adaptability and thermal diffusion barrier between battery modules;
2. Dual cycle liquid cooling system, simulation flow channel optimization and throttling design.
3. Precise prevention and control of PACK level fire protection;
4. Early warning of faults and thermal runaway.
Specification Parameters:
Item
Parameters
Remark
Rated Energy
5.015MWh
Rated Voltage
1331.2V
Voltage Range
1164.8-1500VDC
Rated Charge Discharge Rate
0.5P
0.25P
Rated Charging Current
1884A
942A
Maximum Charging Current
2260A
1130A
1min
Rated Charging Power
2507KW
1253KW
Rated Discharge Current
1884A
942A
Maximum Discharge Current
2260A
1130A
1min
Rated Discharge Power
2507KW
1253KW
UPS（Optional）
Power Style
2KVA,30min
UPS only supplies power to BMS, fire protection,and exhaust systems
Communication Protocol
CAN、IEC61850
Weight
~43t
Protection Level
IP54(Battery compartment)
IP55 max.
IPX5(Electrical compartment)
IPX5(Liquid cooling machine)
Ambient Humidity
0~95%（No condensation）
Corrosion Resistance Grade
C3
Customizable to C5
Seismic intensity
7 degree
