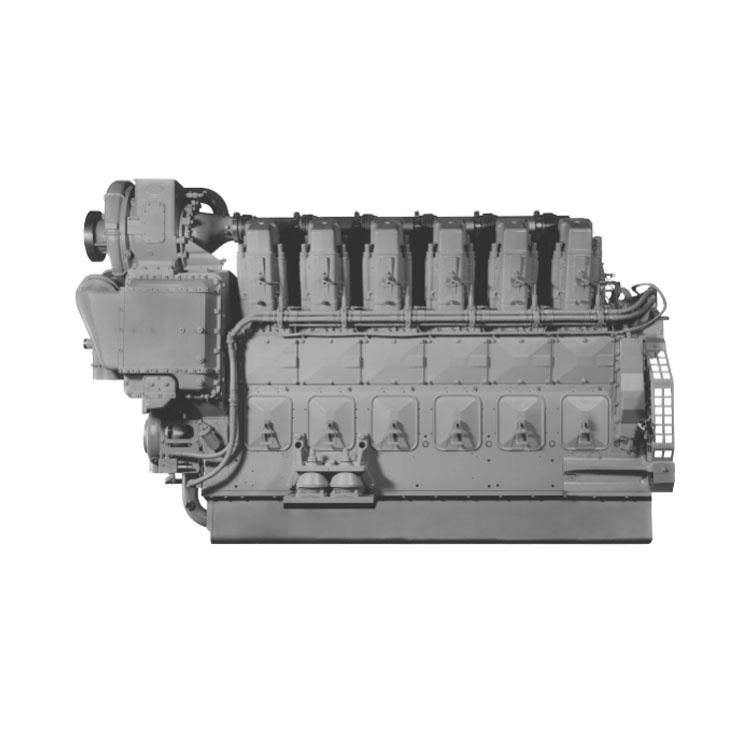

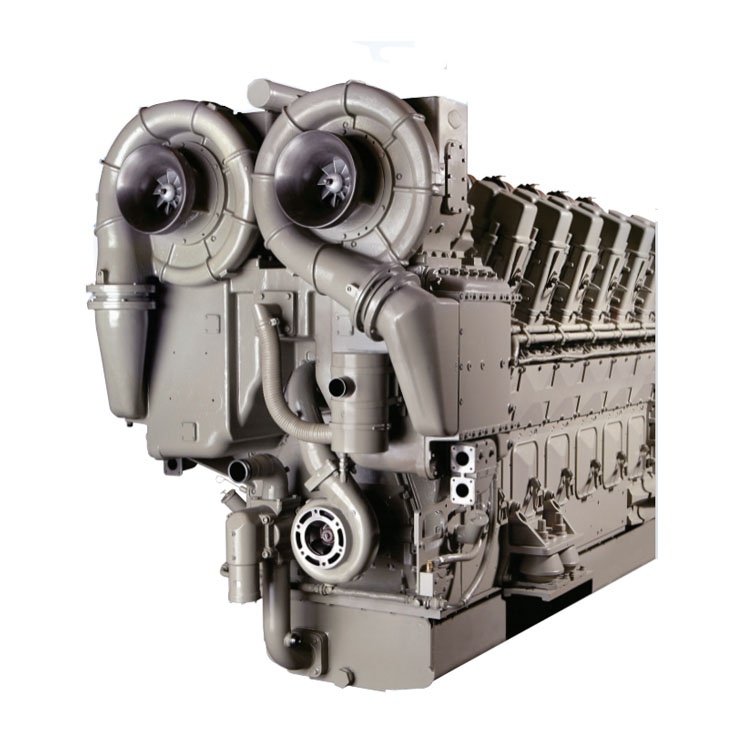

GE’s V250 MDB diesel engines are available in 12-cylinder and 16-cylinder V configurations for medium- speed duty with continuous power from 2,725 kW to 4,240kW...
V250 MDB engine specifications
|
Engine Model |
12V250 |
16V250 |
|
|
Engine data |
|
|
|
|
Number of cylinders |
12 |
16 |
|
|
Stroke cycle |
4 |
4 |
|
|
Cylinder arrangement |
V |
V |
|
|
Bore |
250 mm (9.8 in) |
250 mm (9.8 in) |
|
|
Stroke |
320 mm (12.6 in) |
320 mm (12.6 in) |
|
|
Compression ratio |
16.8:1 |
16.8:1 |
|
|
Power output at 900 rpm |
|
|
|
|
Continuous1 |
2,726 kW (3,655 hp) |
3,632 kW (4,870 hp) |
|
|
Maximum2 |
2,998 kW (4,020 hp) |
3,997 kW (5,360 hp) |
|
|
Power output at 1,000 rpm |
|
|
|
|
Continuous1 |
3,028 kW (4060 hp) |
4,038 kW (5,415 hp) |
|
|
Maximum2 |
3,330 kW (4465 hp) |
4,441 kW (5,955 hp) |
|
|
Power output at 1,050 rpm |
|
|
|
|
Continuous1 |
3,180 kW (4,265 hp) |
4,239 kW (5,685 hp) |
|
|
Maximum2 |
3,497 kW (4,690 hp) |
4,661 kW (6,250 hp) |
|
|
Engine dimensions |
|
|
|
|
A |
Length |
4,808 mm (189 in) |
5,684 mm (224 in) |
|
B |
Width |
2,468 mm (97 in) |
2,468 mm (97 in) |
|
C |
Height |
3,190 mm (126 in) |
3,275 mm (129 in) |
|
D |
Crankshaft center line to deep sump |
1,077 mm (42 in) |
1,162 mm (46 in) |
|
D |
Crankshaft center line to shallow sump |
962 mm (38 in) |
962 mm (38 in) |
|
Exhaust diameter |
610 mm (24 in) |
610 mm (24 in) |
|
|
Dry weight |
23,100 kg (51,600 lbs) |
30,844 kg (68,000 lbs) |
|
